Condition Monitoring Pod
Detect machine faults faster with the Condition Monitoring Pod.
This multi-parameter inspection pod lets you quickly observe oil level, color and clarity, oil aeration and foaming, corrosion, varnish, wear debris and much more. You will quickly identify root causes and symptoms of failure that would have previously gone undetected.
Application: Oil level ports.
Threads: Available in NPT, BSPP & Metric. See below.

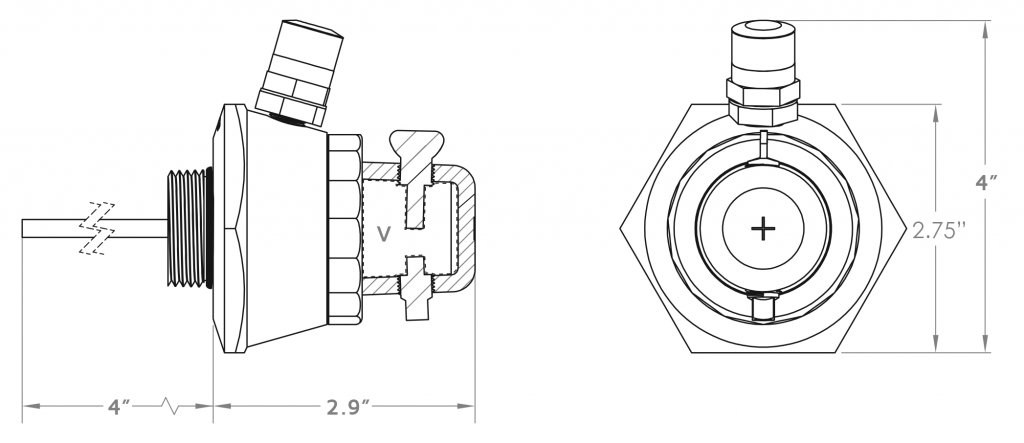

Dimensions: 2.9”L x 2.75”W x 4”H.
Recommended Temperature: -40°F to 200°F (-40°C to 93°C).
Recommended Pressure: Low pressure applications.
Sampling/Drain Valves: Standard flow sampling valve (M16x2).
Outdoor Compatibility: UV-resistant to protect against long-term sun exposure.
Includes: Tritan™ sight glass, Standard flow sampling valve with pilot tube, steel reducer, aluminum body, magnetic plug, steel corrosion indicator and Viton™ Gasket.
Available Male Thread Size
| NPT | BSPP | BSPT | METRIC |
|---|---|---|---|
| ½” | ½” | ½” | 20x1.5 |
| ¾” | ¾” | 22x1.5 | |
| 1" | 1" | 24x1.5 | |
| 1¼” | 1¼” | 26x1.5 | |
| 1½” | 1½” | 27x1.5 | |
| 2" | 2" | 2" | 30x2.0 |
| 33x1.5 | |||
| 36x1.5 | |||
| 41x1.5 | |||
| 42x2.0 | |||
| 42x1.5 |
Luneta Pod Overview Video
Overview video of Luneta's Condition Monitoring Pod "CMP", aka The Pod.
