Lubrication is critical for ensuring rotating equipment assets perform efficiently and reach their design life.

With sustainability in focus, improving lubrication extends asset life and reduces hydrocarbon consumption and waste. This article explores why lubrication matters and how predictive maintenance can optimise lubrication management through better storage, oil condition monitoring, and emerging online technologies.

Why Lubrication Matters

Lubrication is often overlooked but has a major impact on industrial operations. Key factors include:

  • Basic Functions: Reduces friction, wear, corrosion, and noise. In hydraulic systems, it also enables power transmission and cooling. Aging and contamination degrade lubricant effectiveness, leading to inefficiencies and failures. Common contaminants include water, dirt, metal particles, and oxidation byproducts, which accelerate oxidation, viscosity changes, and sludge formation.

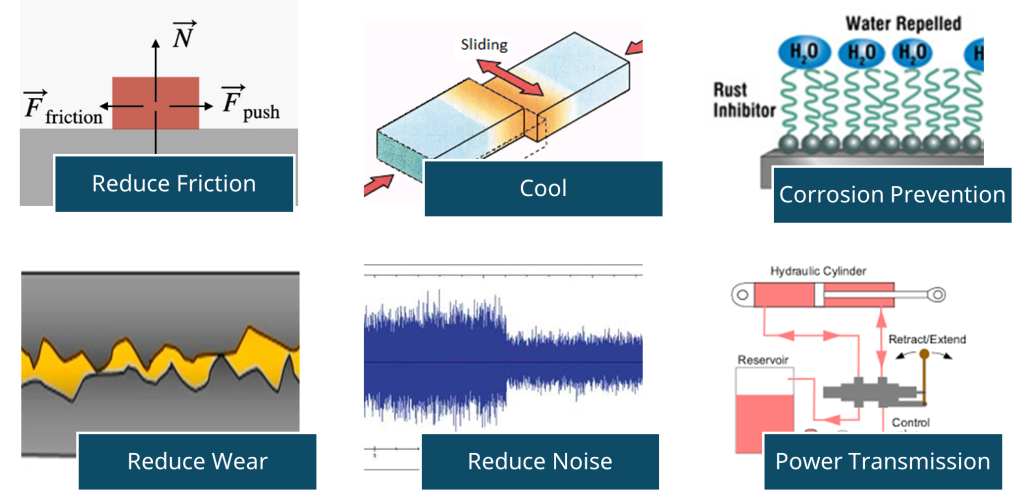

Figure 1: The basic functions of lubrication.



  • Maximising Asset Life: The P-F Curve models asset lifecycle, showing early intervention is crucial. Poor lubrication accelerates failures, making real-time condition visibility essential. Studies indicate that up to 50% of bearing failures are linked to poor lubrication practices. Inadequate lubrication leads to increased friction, higher operating temperatures, and premature component wear.
    • The D-I-P-F Curve (Design, Installation, Potential, and Functional Failure) expands on the P-F Curve, emphasising that failures are often seeded at the design and installation phases. By addressing lubrication issues at these early stages, reliability can be significantly improved before the asset enters the degradation phase.



DIPF Curve

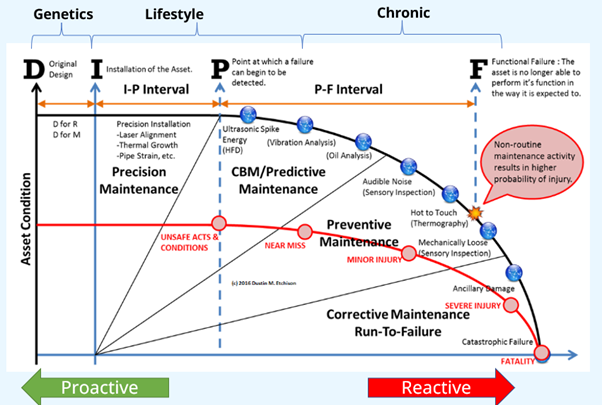

Figure 2: The D-I-P-F Curve.



  • Sustainability: Proper lubrication improves energy efficiency, extends machine life, and reduces waste. Studies show better oil selection can boost gearbox efficiency by 8%. In Australia, only 16% of collected lubricants are re-refined; reducing lubricant consumption can significantly cut environmental impact. Proper lubricant selection and management also contribute to lower carbon emissions, reduced maintenance costs, and minimised environmental contamination due to improper disposal.

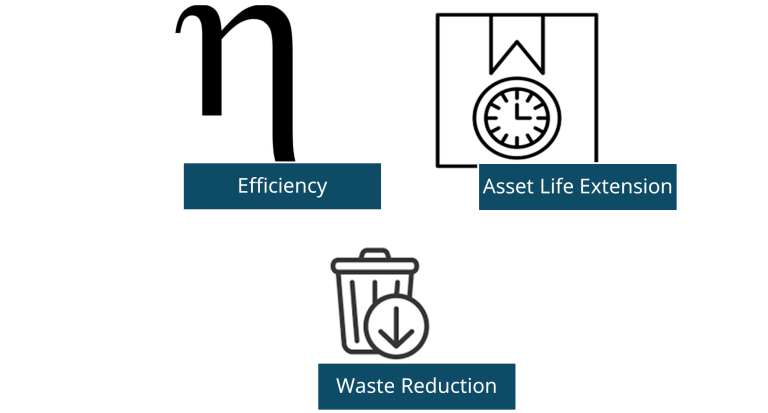

Figure 3. How good lubrication management contributes to sustainability.



Improving Lubrication Management

Precision lubrication addresses key issues like contamination, wear, and air entrapment. Effective management includes:

  • Storage: Lubricants must be kept in cool, clean environments. Poor storage leads to contamination, water ingress, and degradation. The Luneta Air-Lock prevents ingress of moisture and dirt, ensuring clean lubricants and extending lubricant life. Proper labeling, dedicated transfer containers, and desiccant breathers prevent cross-contamination and moisture absorption, maintaining lubricant integrity.
  • Lubrication Condition Monitoring: Monitoring lubricant condition helps extend oil life and optimise machine performance. Visibility-enhancing products like Luneta’s Sight Glass, CMPOD, BOWL, and COLUMN enable detection of level changes, contamination, oxidation, and overheating. Sight glasses allow for real-time visual inspection of oil clarity and presence of free water, while oil sight columns provide a full-range view of oil level and condition within reservoirs.
Poor oil management

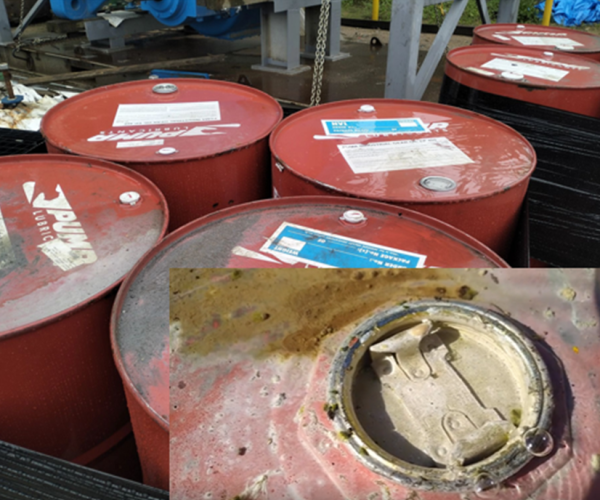

Figure 4. Poor lubrication storage (Images published on LinkedIn by Greg Romer https://www.hpc-consultancy.com/
Luneta 3D Sight Glass

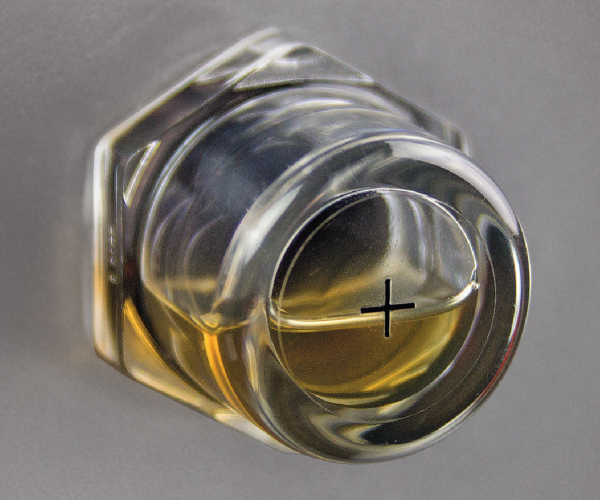

Figure 5. Luneta Sight Glass.

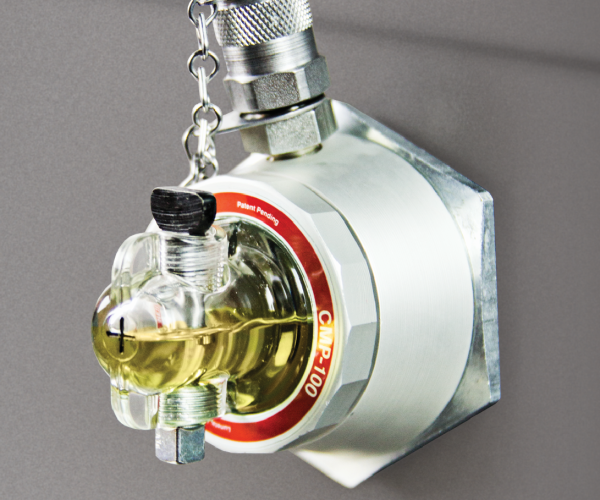

Luneta CMPOD
Figure 6. Luneta CMPOD.
Luneta Bowl

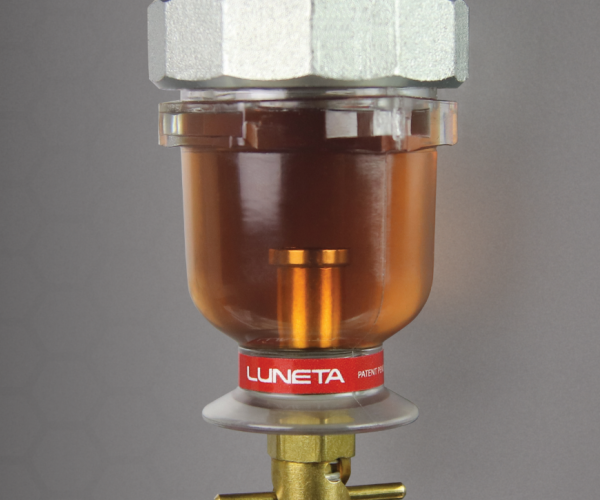

Figure 7. Luneta Bowl.
Luneta Column

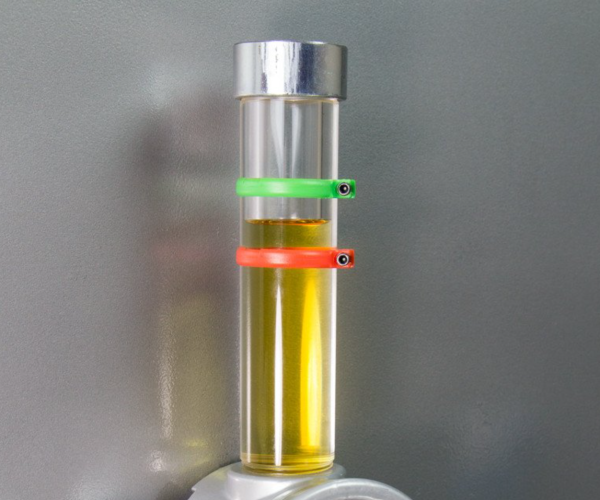

Figure 8. Luneta Column.

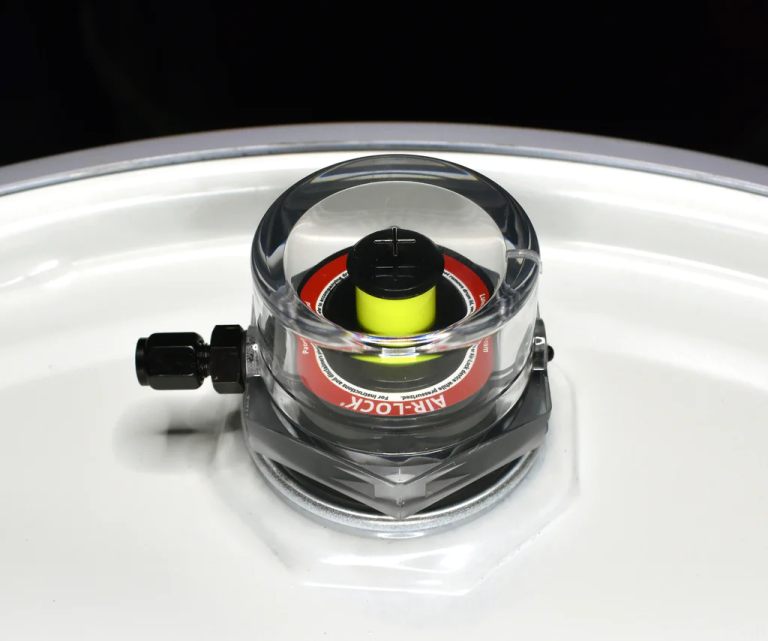

Figure 9. Luneta Air-Lock
  • Manual Sampling & Lab Analysis: Regular oil analysis helps identify degradation, contamination, and wear. Techniques like elemental analysis, ferrography, and Karl Fischer titration provide key insights but have limitations—sampling inconsistencies, time delays, and interpretation challenges. Particle count analysis and viscosity measurements help determine oil cleanliness and suitability for continued use. Additional tests, such as acid number (AN) and base number (BN) analysis, further indicate oil degradation and additive depletion.

Figure 10. Laboratory oil sampling tests for Lubricant degradation, contamination and machine wear.



  • Online Oil Condition Monitoring: New sensor technologies, like Atten[2], offer real-time insights without human intervention. These sensors use high-definition imaging and advanced algorithms to monitor oil condition, overcoming limitations of traditional sampling. Continuous monitoring allows for early detection of issues like water ingress, varnish formation, oxidation, and abnormal wear particle generation, providing proactive maintenance capabilities. Real-time alerts allow maintenance teams to take corrective actions before failures occur, significantly reducing downtime and repair costs.



Conclusion

Effective lubrication management extends asset life, enhances efficiency, and supports sustainability. Leveraging storage solutions, condition monitoring, and advanced technologies ensures optimal machine performance, reduced downtime, and long-term cost savings. Integrating predictive maintenance strategies with real-time oil condition monitoring enhances reliability, prevents failures, and maximises operational efficiency. Understanding the P-F and D-I-P-F Curves allows maintenance teams to take a proactive approach, ensuring lubrication-related failures are addressed before they progress. Companies adopting these strategies can achieve improved asset reliability, lower total cost of ownership, and a more sustainable approach to lubrication management.

Enhance your reliability strategy with real-time oil monitoring today.

Click Here
