XT290 Digital precision level
A reliable machine installation is achieved when the foundations are correctly dimensioned and installed, and machines correctly aligned. Among other things, a measurement instrument for leveling is needed for this. Easy-Laser® XT290 Digital precision level is therefore the obvious complement to your shaft alignment system!
Info
The Easy-Laser® XT290 digital precision level allows you to level your machines easily and reliably. Accuracy is guaranteed by the precision-ground, hardened steel base and precise electronics, and the simplicity by quick stabilization and connection to our XT Alignment App. In principle, all machines must be level (or plumb) to work as intended. Generally speaking machines are required to be set-up to within 0.1 mm/m. The reason is simple; machines must be affected by gravity symmetrically. Forces on bearings and other machine elements are calculated based on these conditions. Lubrication can also be dependent on this. If the machine is not set-up correctly from the start, the intended availability and longevity may not be achieved.
Easy-Laser XT290 digital precision level has been developed for demanding users and environments:
- Clear and bright color screen with a large viewing angle.
- Measurement values and graphics that are updated in real time.
- Extremely quick stabilisation of measurement values.
- Integrated rechargeable battery with long operating time (up to 20 hours).
- Solid precision-ground prismatic base.
- Water and dust proof according to IP66/67.
- Possibility of separate display unit.
The advantages of a separate display unit
You can wirelessly connect XT290 to the XT Alignment app on your own smartphone/tablet or XT display unit, and use these as separate display units. You can readout and follow the adjustment continuously from where you make adjustments to the machine, instead of having to move back and forth repeatedly. It makes the job easier. This also allows you to place the precision level inside any safety cage, and take readouts outside with the machine running.

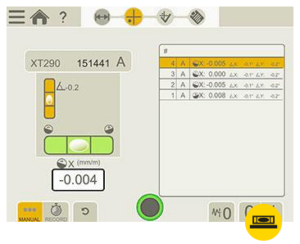

The free app gives you access to even more great functions. For example you can register and record changes during operation (dynamic measurement). You set a time period and frequency. Another function is the ability to connect up to four devices simultaneously (precision level and/or measuring units for shaft alignment) and follow their movements and measurement values. In these ways, you can gain an unsurpassed understanding of how your machine is affected during operation, and find sources of problems more easily.
Documentation a matter of course
The app allows you to create PDF reports containing measurement data, images and notes. This type of documentation is usually requested by the client. Continuous documentation of measurements provides a good basis for analyzing and comparing machine status over time.
Built with precision technology
The XT290 digital precision level has an accuracy of 0.02 mm/m and angle change sensitivity of 0.001 mm/m. Extremely fast updating of the measurement values makes the digital precision spirit level easy to use. The software indicates whether temperature changes or disturbing vibrations can affect the reliability of the measurement results. In addition, the XT290 has inclinometers for two directions. These are used outside the precision measurement range so that you can still adjust the object, but with less accuracy. See technical data for more information.
Measurement programs
Smart functions
Documentation
Digital precision level
- Name
- XT290
- Displayed Resolution
- 0.1 / 0.01 / 0.001 mm/m
0.001 / 0.0001 / 0.00001 inch/foot
10 / 1 / 0.1 arcseconds
0.01 / 0.001 / 0.0001 degrees - Precision level, measurement range
- ±20 mm/m (pitch)
- Precision level, accuracy
- ± 0.02 mm/m ±1%
- Type of display
- TFT 240×240 pixels, RGB color
- Precision level, sensitivity
- ±0.001 mm/m
- Communication
- BT wireless technology, 20 m range [65 ft]
- Inclinometer, measurement range
- ±180° (pitch and roll)
- Environmental protection
- IP Class 66/67
- Inclinometer, accuracy
- ±0.2° (within a range of ±5°),
±1° (within a range of ±180°) - Operating temperature
- -10–50 °C
- Internal battery
- Li-Ion
- Material
- Hardened, anti-corrosion treated steel, PC/ABS plastic
- Dimensions
- L×W×H: 149.0×37.3×47.1 mm [5.87×1.47×1.85″]
- Weight
- 548 g [19.3 oz]
- Warning sensors
- Temperature change and vibration
- Storage temperature
- -20–50 °C
- Operating time
- Up to 20 hours continuously
Technical Data
XT290 Digital precision level A useful tool for setting-up and aligning most types of machine, for example, levelling machine bases, rolls, tables, etc.
Digital precision level
- Name XT290
- Displayed Resolution 0.1 / 0.01 / 0.001 mm/m [mils/inch]
0.001 / 0.0001 / 0.00001 inch/foot
10 / 1 / 0.1 arcseconds
0.01 / 0.001 / 0.0001 degrees - Precision level, measurement range ±20 mm/m (pitch)
- Precision level, accuracy <10 mm/m ±0.02 ±1% mm/m
[<10 mils/inch ±0.02 ±1% mils/inch]
>10 mm/m ±(3%-0.2) mm/m
[>10 mils/inch ±(3%-0.2) mils/inch] - Type of display TFT 240×240 pixels, RGB color
- Precision level, sensitivity ±0.001 mm/m
- Communication BT wireless technology,
20 m range [65 ft] - Inclinometer, measurement range ±180° (pitch and roll)
- Environmental protection IP Class 66/67
- Inclinometer, accuracy ±0.2° (within a range of ±5°),
±1° (within a range of ±180°) - Operating temperature -10–50 °C
- Internal battery Li-Ion
- Material Hardened, anti-corrosion treated steel, PC/ABS plastic
- Dimensions L×W×H: 149.0×37.3×47.1 mm [5.87×1.47×1.85″]
- Weight 548 g [19.3 oz]
- Warning sensors Temperature change and vibration
- Storage temperature -20–50 °C
- Operating time Up to 20 hours continuously
- 1 Digital precision level
- 1 Screw for mounting safety strap*
- 1 Manual on USB stick
- 1 Charger (100–240 V AC) with cable
- 1 Carrying case, WxHxD: 270x240x120 mm [10.6×9.4×4.7″]
* Safety strap is accessory. (Safety regulations differ from country to country.)

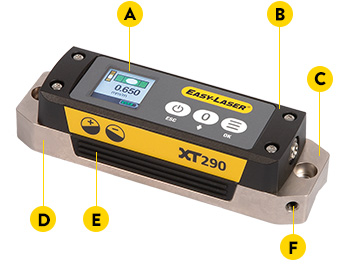

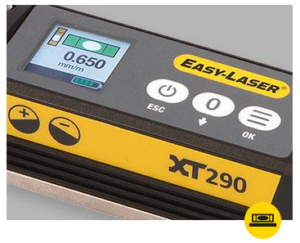

A Bright colour display
B IP66/67 water and dust proof
C Mounting holes for accessories/customisation
D Precision ground prismatic base
E Rubberized grip surface/heat insulation
F For safety strap
XT290 digital precision level
The EasyLaser® XT290 Digital precision level allows you to level your machines easily and reliably. Accuracy is guaranteed by the precision-ground, hardened steel base and precise electronics. The level can be used stand-alone or together with the XT Alignment app (available in the App Store or Google Play).
