The HUB

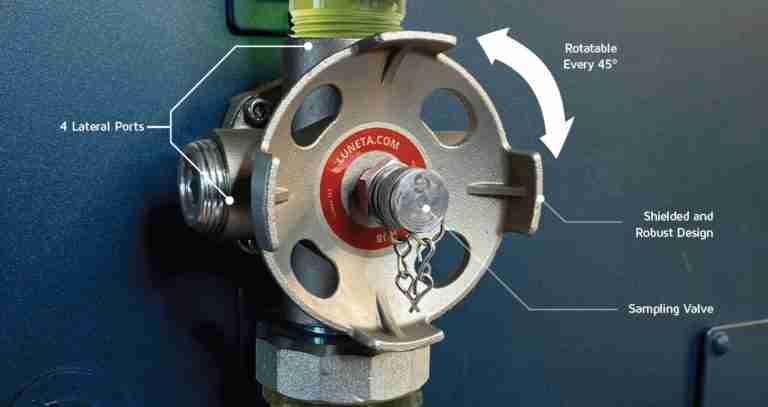

The Hub delivers more port versatility than anything else on the market. Having four lateral ports allows you to install oil level sight glasses, BS&W Bowls, sample valves, drain valves, filter cart, etc. all at the same time. And with a high flow sample port, the Hub can tackle any sampling needs you have.
NOW IN 304 STAINLESS STEEL
Recommended Temperature Range: Range is -13°F to +400°F.
Recommended PSI: 500 psi working and 125 psi for sampling.
Body Material: 304 Stainless Steel.
Pilot Tube: 1/4″ Stainless steel, 12″ long.
Sample Port: High flow, easy access with shielded design.
Easy Install: Hub Body is easily attached with supplied bolts and can be adjusted every 45-degrees to achieve optimal orientation.
Lateral Ports: (2) 1″ NPT and (2) 3/4″ NPT, Includes (4) low profile plugs for sealing lateral ports when not in use and installation hex key is included.
Description Part Number
| DESCRIPTION | PART NUMBER | A | B | C | D |
|---|---|---|---|---|---|
| 0.75" NTP | HUB.075NTP | 3.5" | 2.9" | 3.5" | 0.75" |
| 1" NTP | HUB.100NTP | 3.5" | 2.9" | 3.5" | 1.0" |
| 1.5" NTP | HUB.150NTP | 3.5" | 2.9" | 3.5" | 1.5" |
| 1.25" NTP | HUB.125NTP | 3.5" | 2.9" | 3.5" | 1.25" |
| 0.75" BSPP | HUB.075BSPP | 3.5" | 2.9" | 3.5" | 0.75" |
| 1" BSPP | HUB.100BSPP | 3.5" | 2.9" | 3.5" | 1.0" |
Data Sheets
- HUB-Spec-Sheet-2022.pdfDownload
Luneta Hub - The Hub of Lubricant Monitoring
Luneta's Hub is a multiport adapter for equipment with limited or inaccessible port locations. It allows you to connect all the tools you need in one location.
