BS&W BOWL

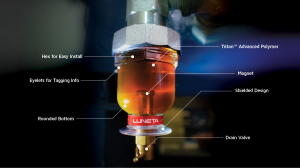

The Bowl serves as both a sight glass and BS&W bowl. Made of impact-resistant Tritan™, the Bowl is stronger than other drain port sight glasses, crystal clear and chemically resistant. The distinctive contour design allows for immediate visual inspection of the oil, along with early detection of potential contamination problems such as water and sediment. Providing a visual indication of wear debris while the machine is running, the Bowl’s rare earth magnetic drain plug also protects machinery by attracting and drawing wear particles to the bottom, proactively preventing machine failure and enabling a thorough drain of contaminates.
Application: Drain ports.
Volume: 1.0 fl. oz.
Threads: Varies (see table).
Dimensions: Varies (see table).
Recommended Temperature: -40°F to 200°F (-40°C to 93°C).
Recommended Pressure: 65 psi./4.5 bar.
Sampling/Drain Valves: Drain valve, spiral to open, turn to lock.
Materials: Bowl: High-impact Tritan™(a crystal-clear copolyester); Adapter: zinc-plated steel; Drain valve: brass; Magnet (optional): Strong neodymium rare earth magnet.
Outdoor Compatibility: UV-resistant to protect against long-term sun exposure.
Chemical Compatibility: Resistant to mineral and synthetic oils that are compatible with fluorocarbon elastomers (VitonTM) and PMMA (acrylic) plastic.

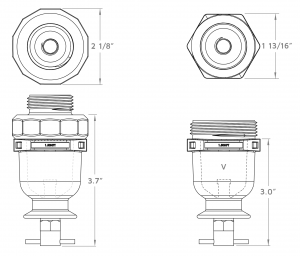

| DESCRIPTION | PART NUMBER | L | D | S | V |
|---|---|---|---|---|---|
| 1/2” NPT | BOWL.050 | 3.7” | 2.2” | 2 1/8” | 1.0 fl.oz. |
| 1/2” NPT Magnetic | BOWL.050.MAG | 3.7” | 2.2” | 2 1/8” | 1.0 fl.oz. |
| 3/4” NPT | BOWL.075 | 3.7” | 2.2” | 2 1/8” | 1.0 fl.oz. |
| 3/4” NPT Magnetic | BOWL.075.MAG | 3.7” | 2.2” | 2 1/8” | 1.0 fl.oz. |
| 1” NPT | BOWL.100 | 3.7” | 2.2” | 2 1/8” | 1.0 fl.oz. |
| 1” NPT Magnetic | BOWL.100.MAG | 3.7” | 2.2” | 2 1/8” | 1.0 fl.oz. |
| 1 1/2” NPT | BOWL.150 | 3.0” | 2.0” | 1 13/16” | 1.0 fl.oz. |
| 1 1/2” NPT Magnetic | BOWL.150.MAG | 3.0” | 2.0” | 1 13/16” | 1.0 fl.oz. |
Data Sheets
- SpecSheet_Bowl_101218_Web_A.pdfDownload
Luneta Bowl - BS&W Sight Glass
Luneta’s new Bottom Sediment and Water Sight Glass - the Bowl - a sight glass designed specifically for Drain Port applications.
